Anti-corrosion & Protective Series
Hot-dip galvanized steel grating, stainless steel grating, spherical column railings, serrated anti-slip steel grating.
Infrastructure Covering Series
Platform steel grating, stair treads, trench drain covers, tree pit covers.
Specialized Custom Series

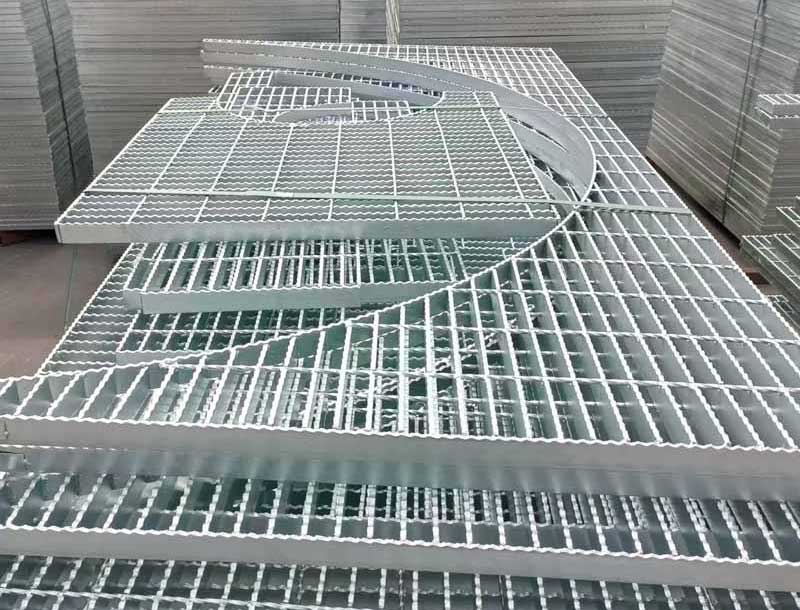

Heavy-duty steel grating, press-locked steel grating, composite steel grating, and we also undertake custom fabrication of all types of non-standard and irregular steel grating based on engineering drawings.
- Style Classification
Core Product Portfolio
Our factory is capable of full-category mass production of standard steel grating products as well as custom-shaped structural components. Our main product categories are as follows:
The most commonly used type, formed by resistance welding of bearing bars and cross bars. High strength and stable structure.
Manufactured by pressing and locking process, offering a smooth surface and refined appearance.

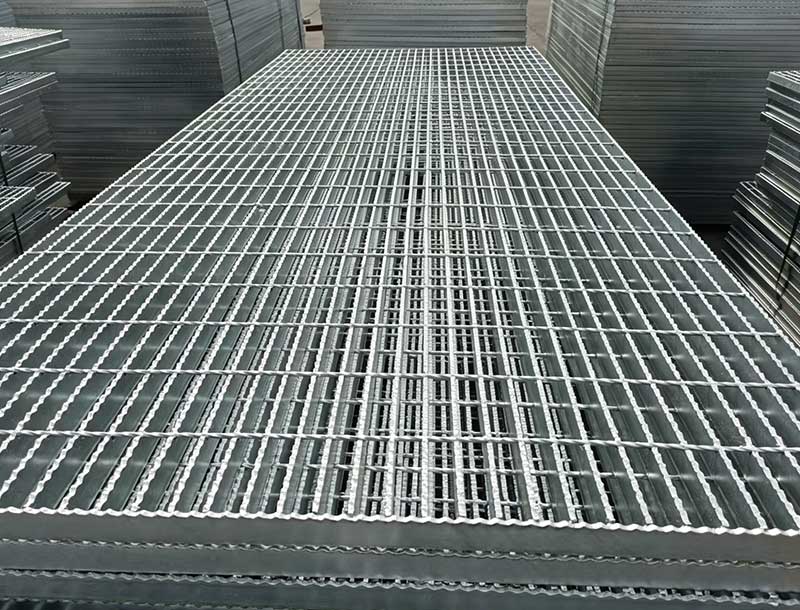

Designed with anti-slip serrations on bearing bars, suitable for wet, oily, or high-safety-demand environments.
Reinforced structure with increased bearing bar size, designed for high load industrial applications.
- Specification
Specification System
Steel grating specifications are generally defined by the following parameters:
Bearing Bar Thickness & Height: 25×3 mm / 30×3 mm / 32×5 mm / 40×5 mm
Bearing Bar Spacing: 30 mm / 40 mm / 60 mm
Cross Bar Spacing: 50 mm / 100 mm
Panel Size: 1000×1000 mm / 1000×1200 mm / Custom sizes available
Surface Treatment: Hot-dip galvanized / Painted / Untreated
Load Grade: Light / Medium / Heavy duty
- Manufacturing
Manufacturing Process Overview
Steel grating is produced through a controlled industrial fabrication process to ensure structural strength, dimensional accuracy, and long-term stability.
Steel bars are selected according to load requirements and cut to specified dimensions.
Bearing bars are arranged with precise spacing according to design specifications.
Cross bars are fixed to bearing bars using high-strength resistance welding or press-locking technology to form a rigid grid structure.
Optional framing or edge welding is applied to enhance stability and installation safety.
Dimensional accuracy, weld strength, and surface consistency are inspected before surface treatment.
- Scene Technology Guide
Segmented Product Application Guide

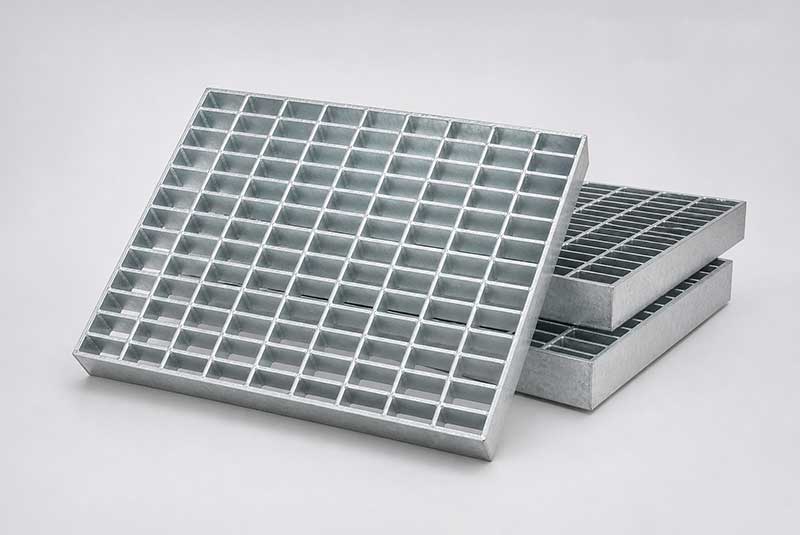

Galvanized Steel Grating
Recommended Applications
- Industrial Platforms
- Municipal Drainage Systems
- Power Plants
- Steel Structure Walkways
- Warehouses & Logistics Centers
Technical Features
Provides excellent corrosion resistance, high structural strength, and long-term outdoor durability for demanding industrial environments.

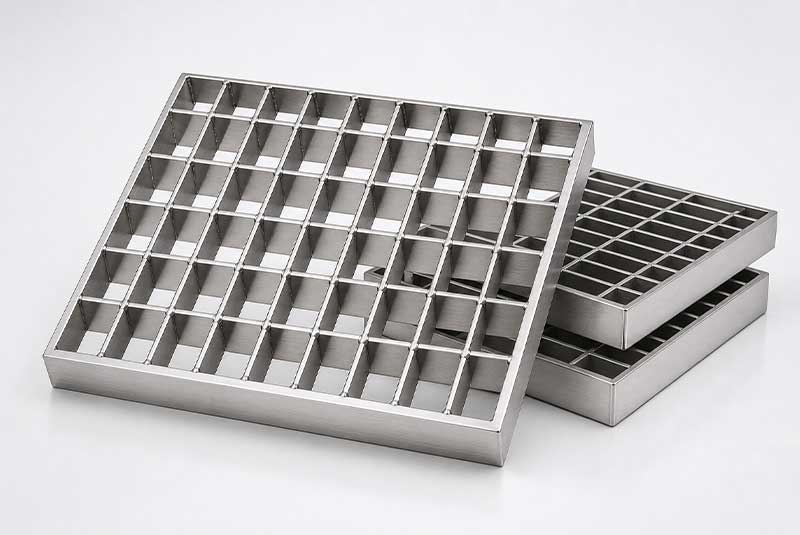

Stainless Steel Grating
Recommended Applications
- Food Processing Plants
- Chemical Facilities
- Water Treatment Plants
- Pharmaceutical Workshops
- Marine Environments
Technical Features
Offers superior corrosion resistance, hygienic performance, and durability in humid or chemically aggressive conditions.

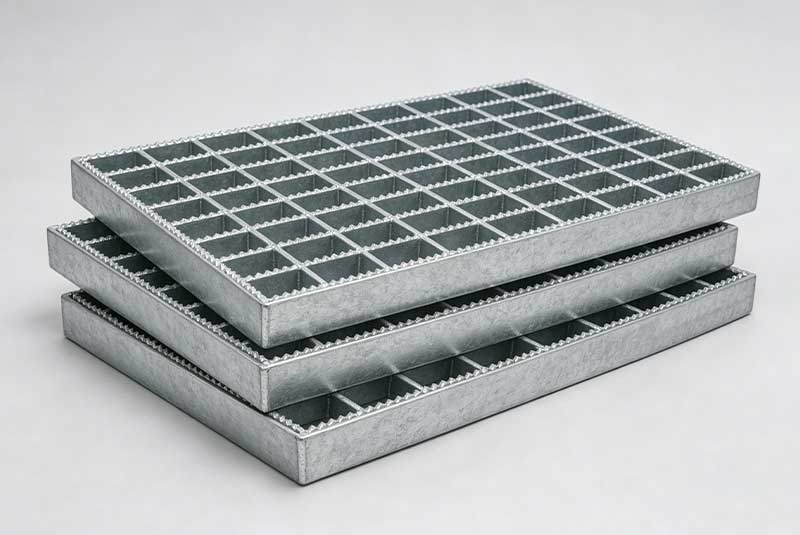

Serrated Steel Grating
Recommended Applications
- Oil & Gas Facilities
- Offshore Platforms
- Outdoor Stair Systems
- Industrial Walkways
- High-Humidity Environments
Technical Features
Enhanced anti-slip surface design improves workplace safety in wet, oily, or slippery operating conditions.

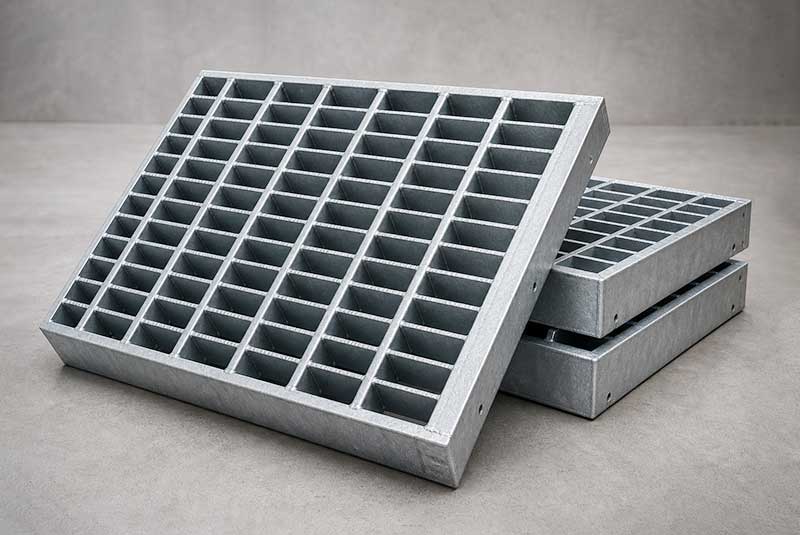

Heavy Duty Steel Grating
Recommended Applications
- Ports & Docks
- Airport Facilities
- Heavy Equipment Platforms
- Mining Industry
- Industrial Loading Areas
Technical Features
Designed for high load-bearing capacity and structural stability under heavy traffic and demanding operational conditions.

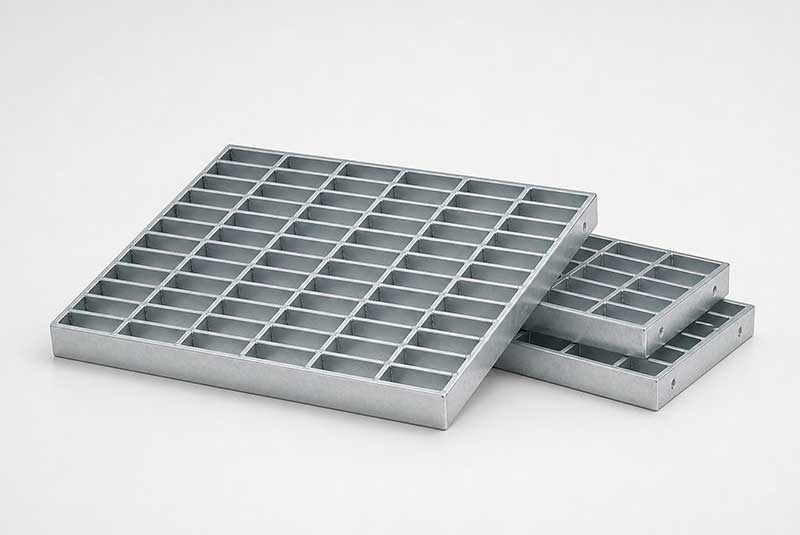

Press-Locked Steel Grating
Recommended Applications
- Commercial Buildings
- Architectural Projects
- Public Walkways
- Decorative Platforms
- Ventilation Flooring Systems
Technical Features
Designed for high load-bearing capacity and structural stability under heavy traffic and demanding operational conditions.

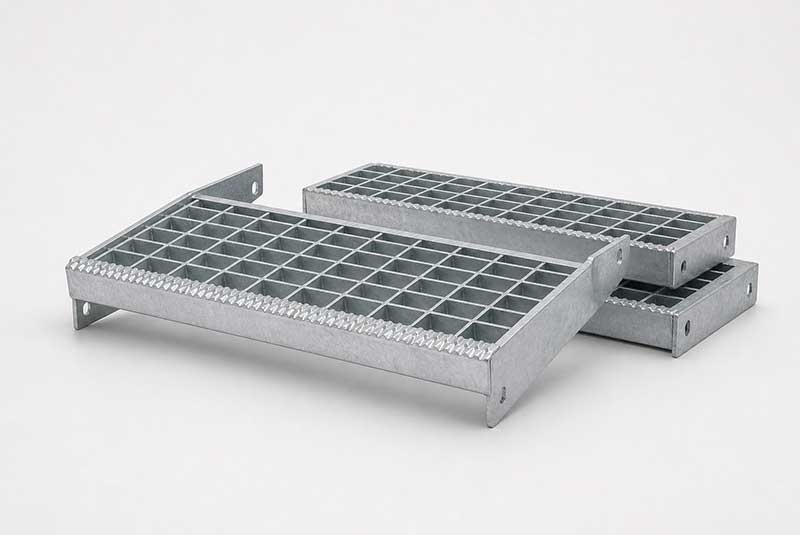

معالجات الدرج
Recommended Applications
- Industrial Stair Systems
- Factory Access Areas
- Maintenance Platforms
- Fire Escape Systems
- Public Infrastructure
Technical Features
Provides safe footing, anti-slip performance, and durable support for high-traffic stair applications.

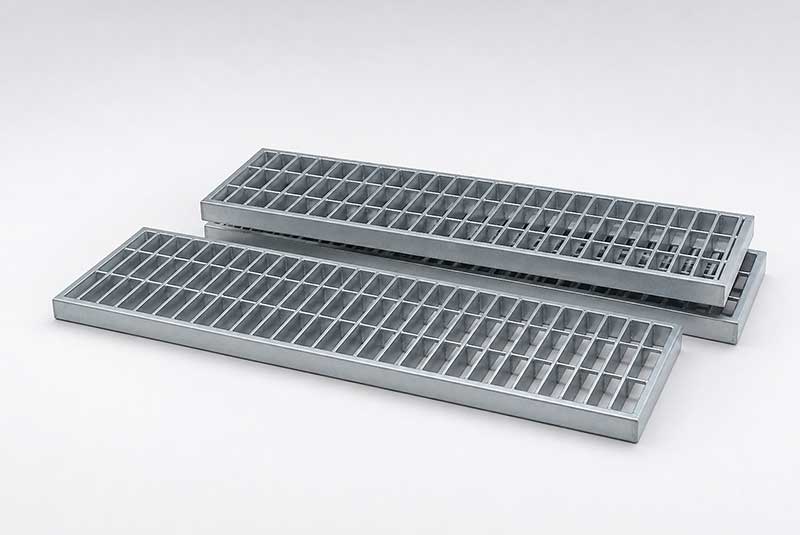

Trench Covers
Recommended Applications
- Municipal Drainage Projects
- Water Treatment Plants
- Industrial Workshops
- Parking Areas
- Public Infrastructure
Technical Features
Ensures efficient drainage, strong load support, and easy maintenance for indoor and outdoor drainage systems.

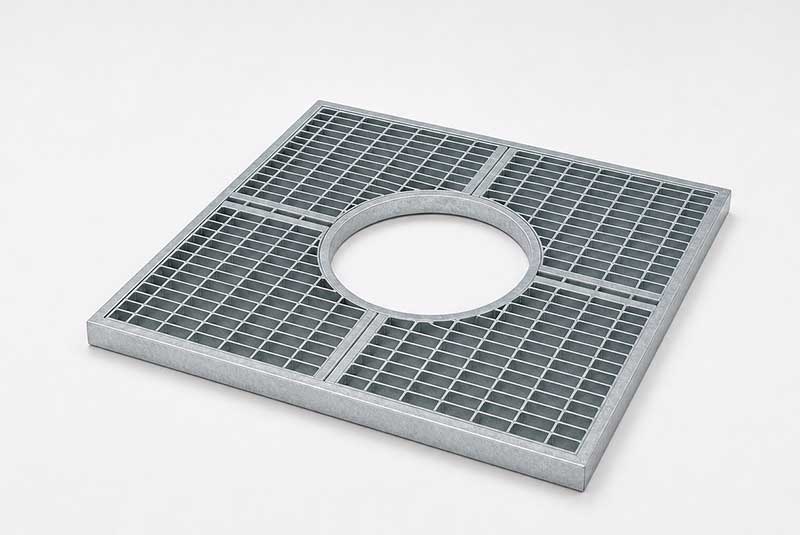

Tree Grates
Recommended Applications
- Urban Landscaping
- Public Sidewalks
- Commercial Streets
- Parks & Gardens
- Municipal Beautification Projects
Technical Features
Protects tree roots while maintaining pedestrian safety and improving urban landscape aesthetics.

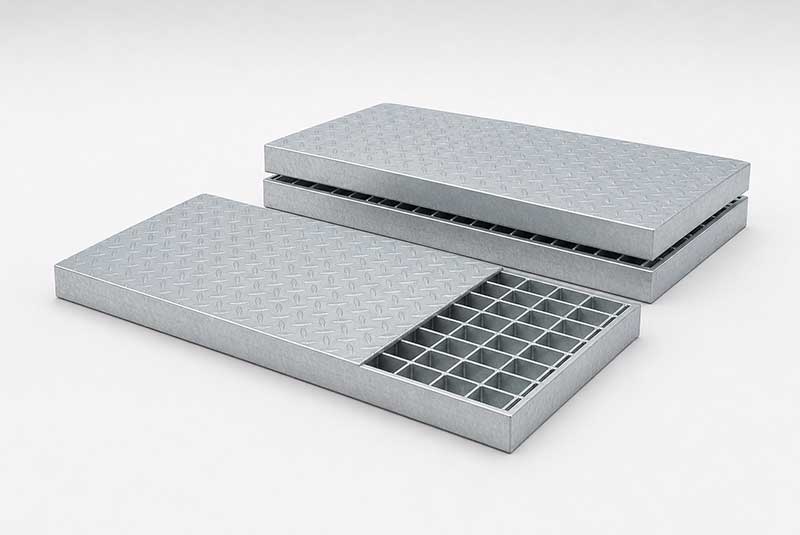

Compound Steel Grating
Recommended Applications
- Industrial Platforms
- Warehouse Flooring
- Heavy-Duty Walkways
- Equipment Platforms
- Factory Mezzanines
Technical Features
- FAQ
Frequently Ask Questions.
Have questions about our products, customization options, production process, or delivery arrangements? Explore the answers below or contact our team for personalized assistance and professional guidance.
We are a professional steel grating manufacturer with our own production facilities and experienced technical team.
Yes. We provide custom fabrication services based on customer drawings, specifications, and project requirements.
We offer carbon steel, galvanized steel, stainless steel, and other materials to suit different applications.
Our products are widely used in power plants, chemical facilities, water treatment projects, ports, warehouses, and municipal infrastructure.
We implement strict quality control procedures, including raw material inspection, production monitoring, and final product inspection.
Lead time depends on product specifications and order quantity. Please contact us for a detailed production schedule.
